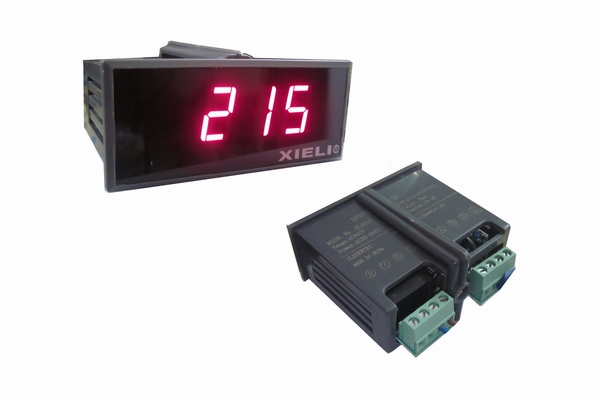

Introduction:XL3200 3½ DC Digital Ammeter
Power Supply:AC220V±10%
Dimension(mm):W74×H32×D69
Tapping size(mm):70×28
Install method: Guide screw fixing
Maximum Count:1999(3 1/2 digit)
Display:Ultra-bright LED display
Color:Red,Blue,Green displays available
Character Height:15mm
Operating temperature:0℃~60℃
Storage Temperature:-20℃~80℃
Relative humidity:20%~80%
Weight:75~80g
Sample Frequency:400ms
|
Model
|
Digit display
|
Full measurement
|
Resolution
|
Accuracy
|
Input impedance
|
Max.input value
|
Power Supply
|
|
XL3211
|
3½
|
±199.9μA
|
0.1μA
|
±0.5 % +1Digit
|
1KΩ
|
±15mA
|
AC 220V
|
|
XL3212
|
3½
|
±1.999mA
|
1μA
|
±0.5 % +1Digit
|
100Ω
|
±50mA
|
AC 220V
|
|
XL3213
|
3½
|
±19.99mA
|
10μA
|
±0.5 % +1Digit
|
10Ω
|
±150mA
|
AC 220V
|
|
XL3214
|
3½
|
±199.9mA
|
100μA
|
±0.5 % +1Digit
|
1Ω
|
±500mA
|
AC 220V
|
|
XL3215
|
3½
|
±1.999A
|
1mA
|
±0.5 % +1Digit
|
0.1Ω
|
±3A
|
AC 220V
|
|
XL3216
|
3½
|
±5.00A
|
10mA
|
±1.0 % +3Digit
|
0.01Ω
|
±7A
|
AC 220V
|
|
