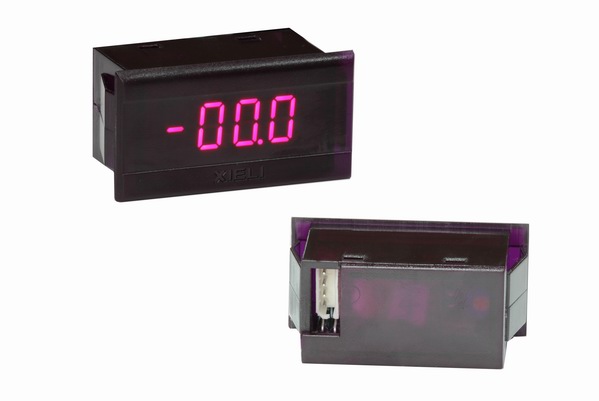

XL3600 series Super-mini DC Digital Ammeter
Power Supply:DC5V or DC12V
Dimension(mm):W50×H26×D23.5
Mounting hole(mm):46×23
Install method: Inlay
Maximum Count:1999(3 1/2 digit)
Display:Ultra-bright LED display
Color:Red,Blue,Green displays available
Character Height:9mm
Operating temperature:0℃~60℃
Storage Temperature:-20℃~80℃
Relative humidity:20%~80%
Weight:30-35g
Sample Frequency:400ms
|
Model
|
Digit
display
|
Full measurement
|
Resolution
|
Accuracy
|
Input impedance
|
Max.input value
|
Power Supply
|
|
XL3600A-1
|
3½
|
±199.9μA
|
100nA
|
±0.5% +1digit
|
1KΩ
|
±15mA
|
DC12V/DC5V
|
|
XL3600A-2
|
3½
|
±1.999mA
|
1μA
|
±0.5% +1digit
|
100Ω
|
±50mA
|
DC12V/DC5V
|
|
XL3600A-3
|
3½
|
±19.99mA
|
10μA
|
±0.5% +1digit
|
10Ω
|
±150mA
|
DC12V/DC5V
|
|
XL3600A-4
|
3½
|
±199.9mA
|
100μA
|
±0.5% +1digit
|
1Ω
|
±500mA
|
DC12V/DC5V
|
|
